电源提供电子设备所需的电力。透过变压器及充电器使电子设备能取得稳定的电源,提升工作效能同时也能节省能源消耗,以符合国际法规(包括80 plus®、 ERP Lot6和能源之星)订定的能要标准。而随着携带的电子装置增加,变压器及充电器也有轻薄高效能高充电速度的趋势。
随着人们拥有的电子产品增加,如何增加充电的便利性、缩短充电耗费的时间还维持同等的效率输出成为技术发展的关键。市场上的快速充电器以及USB供电器(PD Charger)便是解决方案。 PD Charger利用USB端口或USB Type-C快速充电、亦能做为电子装置的电源来源。适用电压范围广泛,5V至28V的电子产品皆适用。强茂供应电源供应器所需电子元件已超过30年。我们充分了解客户对于不同功率密度的设计需求以及市场推广的考量。从 HV/LV 电源开关的MOSFET到USB Type-C 介面的 ESD 保护元件,强茂提供多元的产品组合和最佳的方案选择。

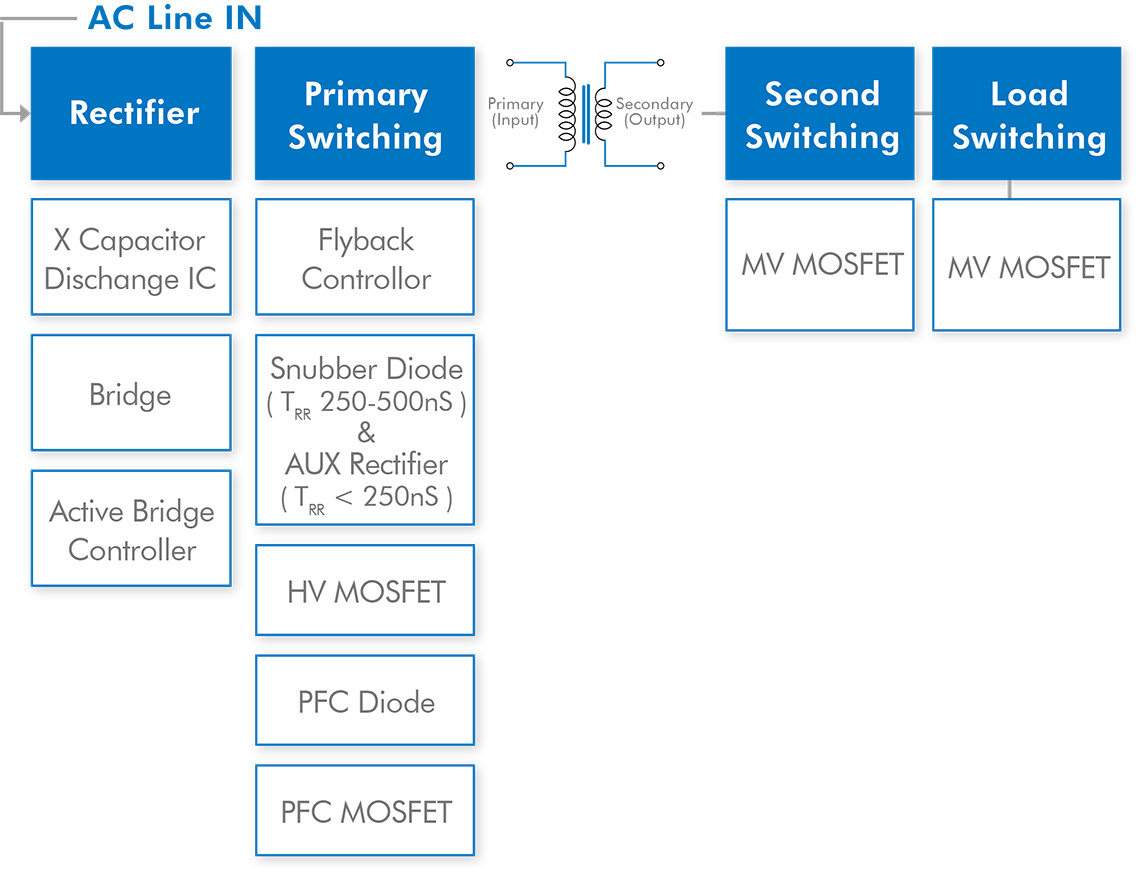

电路拓扑

-
PMS310
• Ideally suited for automatic assembly
• Save space on printed circuit boards
• Ultra thin profile package for space constrained utilization -
PMS410
• Ideally suited for automatic assembly
• Save space on printed circuit boards
• Ultra thin profile package for space constrained utilization -
DXK310
• Ideal for printed circuit boards
• UL recognition file number E526209
• Lead free in compliance with EU RoHS 2.0 -
DXK410
• Ideal for printed circuit boards
• UL recognition file number E526209
• Lead free in compliance with EU RoHS 2.0 -
DXK610
• Ideal for printed circuit boards
• UL recognition file number E526209
• Lead free in compliance with EU RoHS 2.0 -
DXK810
• Ideal for printed circuit boards
• UL recognition file number E526209
• Lead free in compliance with EU RoHS 2.0
-
PJMF130N65EC
• RDS(ON) Max, VGS@10V: 130mΩ
• Easy to use/ drive
• High Speed Switching and Low RDS(ON)
• 100% Avalanche Tested
• 100% Rg Tested
• Lead free in compliance with EU RoHS 2.0
• Green molding compound as per IEC 61249 standard
-
PJMF210N65EC
• RDS(ON) Max, VGS@10V: 210mΩ
• Easy to use/ drive
• High Speed Switching and Low RDS(ON)
• 100% Avalanche Tested
• 100% Rg Tested
• Lead free in compliance with EU RoHS 2.0
• Green molding compound as per IEC 61249 standard -
PJMF280N65E1
• RDS(ON) Max, VGS@10V: 280mΩ
• Easy to use/ drive
• High Speed Switching and Low RDS(ON)
• 100% Avalanche Tested
• 100% Rg Tested
• Lead free in compliance with EU RoHS 2.0
• Green molding compound as per IEC 61249 standard -
PJMF390N65EC
• RDS(ON) Max, VGS@10V: 390mΩ
• Easy to use/ drive
• High Speed Switching and Low RDS(ON)
• 100% Avalanche Tested
• 100% Rg Tested
• Lead free in compliance with EU RoHS 2.0
• Green molding compound as per IEC 61249 standard -
PJMF600N65E1
RDS(ON) Max, VGS@10V: 600mΩ
• Easy to use/ drive
• High Speed Switching and Low RDS(ON)
• 100% Avalanche Tested
• 100% Rg Tested
• Lead free in compliance with EU RoHS 2.0
• Green molding compound as per IEC 61249 standard -
PJMF990N65EC
• RDS(ON) Max, VGS@10V: 990mΩ
• Easy to use/ drive
• High Speed Switching and Low RDS(ON)
• 100% Avalanche Tested
• 100% Rg Tested
• Lead free in compliance with EU RoHS 2.0
• Green molding compound as per IEC 61249 standard -
PJMD390N65EC
• RDS(ON) Max, VGS@10V: 390mΩ
• Easy to use/ drive
• High Speed Switching and Low RDS(ON)
• 100% Avalanche Tested
• 100% Rg Tested
• Lead free in compliance with EU RoHS 2.0
• Green molding compound as per IEC 61249 standard -
PJMD600N65E1
• RDS(ON) Max, VGS@10V: 600mΩ
• Easy to use/ drive
• High Speed Switching and Low RDS(ON)
• 100% Avalanche Tested
• 100% Rg Tested
• Lead free in compliance with EU RoHS 2.0
• Green molding compound as per IEC 61249 standard
-
PJMD990N65EC
• RDS(ON) Max, VGS@10V: 990mΩ
• Easy to use/ drive
• High Speed Switching and Low RDS(ON)
• 100% Avalanche Tested
• 100% Rg Tested
• Lead free in compliance with EU RoHS 2.0
• Green molding compound as per IEC 61249 standard -
PJMB130N65EC
• RDS(ON) Max, VGS@10V: 130mΩ
• Easy to use/ drive
• High Speed Switching and Low RDS(ON)
• 100% Avalanche Tested
• 100% Rg Tested
• Lead free in compliance with EU RoHS 2.0
• Green molding compound as per IEC 61249 standard -
PJMB210N65EC
• RDS(ON) Max, VGS@10V: 210mΩ
• Easy to use/ drive
• High Speed Switching and Low RDS(ON)
• 100% Avalanche Tested
• 100% Rg Tested
• Lead free in compliance with EU RoHS 2.0
• Green molding compound as per IEC 61249 standard -
PJMB310N65EC
• RDS(ON) Max, VGS@10V: 310mΩ
• Easy to use/ drive
• High Speed Switching and Low RDS(ON)
• 100% Avalanche Tested
• 100% Rg Tested
• Lead free in compliance with EU RoHS 2.0
• Green molding compound as per IEC 61249 standard -
PJMB390N65EC
• RDS(ON) Max, VGS@10V: 390mΩ
• Easy to use/ drive
• High Speed Switching and Low RDS(ON)
• 100% Avalanche Tested
• 100% Rg Tested
• Lead free in compliance with EU RoHS 2.0
• Green molding compound as per IEC 61249 standard
-
ED606CS
• Superfast recovery times-epitaxial construction
• Low forward voltage, high current capability
• Exceeds environmental standards of MIL-S-19500/228
• Hermetically sealed.
• Low leakage
• High surge capability
• Lead free in compliance with EU RoHS 2011/65/EU directive.
• Green molding compound as per IEC61249 Std..(Halogen Free) -
ER1006FCT
Plastic package has Underwriters Laboratory
Flammability Classification 94V-O.
Flame Retardant Epoxy Molding Compound.
• Low power loss, high efficiency.
• Low forward voltge, high current capability
• High surge capacity.
• Super fast recovery times, high voltage.
• Lead free in compliance with EU RoHS 2.0
• Green molding compound as per IEC 61249 standard -
ER1006F
• Low power loss, high efficiency
• Low forward voltage, high current capability
• High surge capacity
• Super fast recovery times, high voltage
• Glass passivation junction
• Lead free in compliance with EU RoHS2.0 (2011/65/EU & 2015/865/EU directive)
• Green molding compound as per IEC61249 Std. . (Halogen Free) -
ER1606FCT
• Low power loss, high efficiency
• Low forward voltage, high current capability
• High surge capacity
• Super fast recovery times, high voltage
• Glass passivation junction
• Lead free in compliance with EU RoHS2.0 (2011/65/EU & 2015/865/EU directive)
• Green molding compound as per IEC61249 Std. . (Halogen Free) -
PSDD0860L1
• Fast recovery
• Low forward voltage
• Optimized trade-off performance between VF & TRR
• Soft recovery characteristic for better EMI
• High junction temperature 150 oC
• Lead free in compliance with EU RoHS 2.0
• Green molding compound as per IEC 61249 standard
-
PSDB0860L1
• Fast recovery
• Low forward voltage
• Optimized trade-off performance between VF & TRR
• Soft recovery characteristic for better EMI
• High junction temperature 150 oC
• Lead free in compliance with EU RoHS 2.0
• Green molding compound as per IEC 61249 standard -
PSDB1560L1
• Fast recovery
• Low forward voltage
• Optimized trade-off performance between VF & TRR
• Soft recovery characteristic for better EMI
• High junction temperature 150 oC
• Lead free in compliance with EU RoHS 2.0
• Green molding compound as per IEC 61249 standard -
PSDB3060L1
• Fast recovery
• Low forward voltage
• Optimized trade-off performance between VF & TRR
• Soft recovery characteristic for better EMI
• High junction temperature 150 oC
• Lead free in compliance with EU RoHS 2.0
• Green molding compound as per IEC 61249 standard -
PSDF0860L1
• Fast recovery
• Low forward voltage
• Optimized trade-off performance between VF & TRR
• Soft recovery characteristic for better EMI
• High junction temperature 150 oC
• Lead free in compliance with EU RoHS 2.0
• Green molding compound as per IEC 61249 standard -
PSDF1560L1
• Fast recovery
• Low forward voltage
• Optimized trade-off performance between VF & TRR
• Soft recovery characteristic for better EMI
• High junction temperature 150 oC
• Lead free in compliance with EU RoHS 2.0
• Green molding compound as per IEC 61249 standard
-
PJMF120N60EC
• RDS(ON) Max, VGS@10V: 120mΩ
• Easy to use/ drive
• High Speed Switching and Low RDS(ON)
• 100% Avalanche Tested
• 100% Rg Tested
• Lead free in compliance with EU RoHS 2.0
• Green molding compound as per IEC 61249 standard -
PJMF190N60E1
• RDS(ON) Max, VGS@10V: 190mΩ
• Easy to use/ drive
• High Speed Switching and Low RDS(ON)
• 100% Avalanche Tested
• 100% Rg Tested
• Lead free in compliance with EU RoHS 2.0
• Green molding compound as per IEC 61249 standard -
PJMF280N60E1
• RDS(ON) Max, VGS@10V: 280mΩ
• Easy to use/ drive
• High Speed Switching and Low RDS(ON)
• 100% Avalanche Tested
• 100% Rg Tested
• Lead free in compliance with EU RoHS 2.0
• Green molding compound as per IEC 61249 standard -
PJMF360N60EC
• RDS(ON) Max, VGS@10V: 360mΩ
• Easy to use/ drive
• High Speed Switching and Low RDS(ON)
• 100% Avalanche Tested
• 100% Rg Tested
• Lead free in compliance with EU RoHS 2.0
• Green molding compound as per IEC 61249 standard -
PJMD360N60EC
• RDS(ON) Max, VGS@10V: 360mΩ
• Easy to use/ drive
• High Speed Switching and Low RDS(ON)
• 100% Avalanche Tested
• 100% Rg Tested
• Lead free in compliance with EU RoHS 2.0
• Green molding compound as per IEC 61249 standard
-
PSMQC033N06NS1
• RDS(ON), VGS@10V, ID@40A<3.3mΩ
• RDS(ON), VGS@7V, ID@10A<5.4mΩ
• High switching speed
• Low reverse transfer capacitance
• Lead free in compliance with EU RoHS 2.0
• Green molding compound as per IEC 61249 standard -
PSMQC060N06LS1
• RDS(ON), VGS@10V, ID@20A<6mΩ
• RDS(ON), VGS@4.5V, ID@10A<10mΩ
• High switching speed
• Low reverse transfer capacitance
• Lead free in compliance with EU RoHS 2.0
• Green molding compound as per IEC 61249 standard -
PSMQC040N10NS2
• RDS(ON) < 4.4 mΩ at VGS = 10 V, ID = 50 A
• RDS(ON) < 6.5 mΩ at VGS = 6 V, ID = 25 A
• High switching speed
• Low reverse transfer capacitance
• Lead free in compliance with EU RoHS 2.0
• Green molding compound as per IEC 61249 standard -
PSMP050N10NS2
• High switching speed
• Low reverse transfer capacitance
• Lead free in compliance with EU RoHS 2.0
• Green molding compound as per IEC 61249 standard -
PSMB050N10NS2
• High switching speed
• Low reverse transfer capacitance
• Lead free in compliance with EU RoHS 2.0
• Green molding compound as per IEC 61249 standard
-
PSMQC033N06NS1
• RDS(ON), VGS@10V, ID@40A<3.3mΩ
• RDS(ON), VGS@7V, ID@10A<5.4mΩ
• High switching speed
• Low reverse transfer capacitance
• Lead free in compliance with EU RoHS 2.0
• Green molding compound as per IEC 61249 standard -
PSMQC060N06LS1
• RDS(ON), VGS@10V, ID@20A<6mΩ
• RDS(ON), VGS@4.5V, ID@10A<10mΩ
• High switching speed
• Low reverse transfer capacitance
• Lead free in compliance with EU RoHS 2.0
• Green molding compound as per IEC 61249 standard -
PSMQC040N10NS2
• RDS(ON) < 4.4 mΩ at VGS = 10 V, ID = 50 A
• RDS(ON) < 6.5 mΩ at VGS = 6 V, ID = 25 A
• High switching speed
• Low reverse transfer capacitance
• Lead free in compliance with EU RoHS 2.0
• Green molding compound as per IEC 61249 standard -
PSMP050N10NS2
• High switching speed
• Low reverse transfer capacitance
• Lead free in compliance with EU RoHS 2.0
• Green molding compound as per IEC 61249 standard -
PSMB050N10NS2
• High switching speed
• Low reverse transfer capacitance
• Lead free in compliance with EU RoHS 2.0
• Green molding compound as per IEC 61249 standard
