功率蕭特基二極體 (IF ≧ 1A)
MBR60100PT
Active

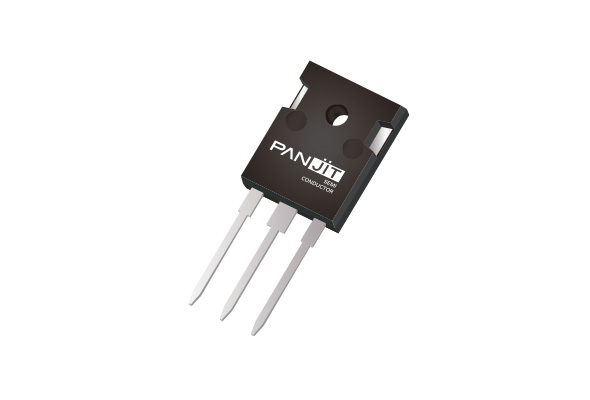

The MBR60xxxPT series consists of 40~200 V Schottky Barrier Rectifiers with a current rating of 60 A. These products feature low power loss and high efficiency in a TO-3P/TO-247AD package. with high current capability, specifically making them suited for use in low voltage, high frequency inverters free wheeling and polarity protection applications. Additionally, the products are green molding compound compliant with EU RoHS 2.0.
-
Package
TO-3P/TO-247AD
-
Voltage
100 V
-
Current
60 A
-
Type
Standard
-
Features
• Plastic package has Underwriters Laboratory
Flammability Classification 94V-0
Flame Retardant Epoxy Molding Compound
• Low power loss, high efficiency.
• High current capability
• For use in low voltage, high frequency inverters, free wheeling, and polarity protection applications
• Lead free in compliance with EU RoHS 2.0
Maximum Ratings and Electrical Characteristics (TA = 25°C)
| PARAMETER | SYMBOL | LIMIT | UNITS | |
|---|---|---|---|---|
| Maximum Repetitive Peak Reverse Voltage | VRRM | 100 | V | |
| Maximum RMS Voltage | VRMS | 70 | V | |
| Maximum DC Blocking Voltage | VDC | 100 | V | |
| Maximum Average Forward Current | IF(AV) | 60 | A | |
| Peak Forward Surge Current : 8.3 ms Single Half Sine-Wave Superimposed On Rated Load | IFSM | 400 | A | |
| Maximum Forward Voltage per leg | @30 A | VF | 0.8 | V |
| Maximum DC Reverse Current at Related DC Blocking Voltage | TJ=25°C TJ=100°C |
IR | 0.05 20 |
mA |
| Typical Thermal Resistance | RθJC | 0.7 | °C/W | |
| Operating Junction and Storage Temperature Range | TJ, TSTG | -65~175 | °C |
